Description

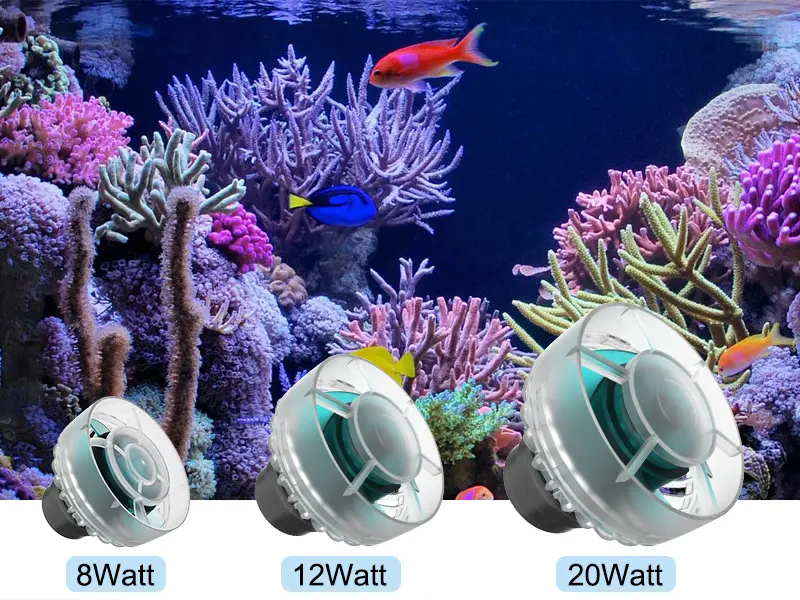

8Watt/12Watt/20Watt
hygger Transparent Powerful Wave Maker Pump
This wave maker’s pump body is transparent, and the blades are transparent blue, which can be well hidden in the aquariums without being conspicuous.
At the same time, the wave pump is multi-functional, powerful, quiet, and can make the water flow in the aquarium tank circulate in all directions, maintain a constant temperature, promote filtration, and provide a healthy growth environment for fish and corals.

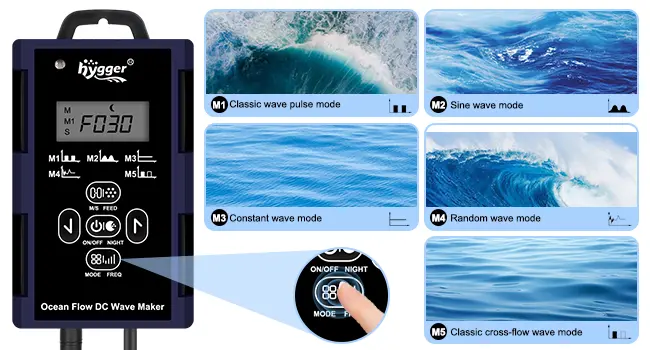

5 Wave-making Modes
Press the “MODE” button to select wave-making mode for your aquarium:
M1：Classic wave pulse mode, M2：Sine wave mode, M3：Constant wave mode, M4：Random wave mode, M5：Classic cross-flow wave mode.

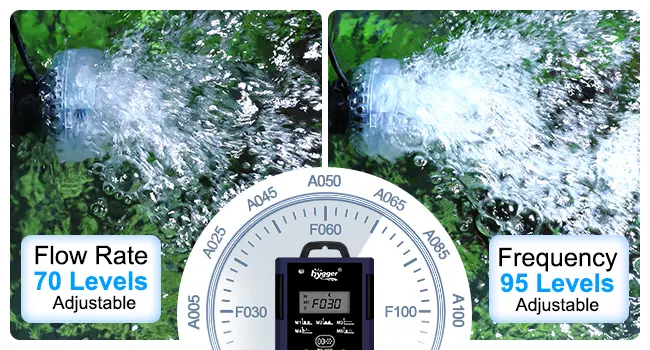

Adjustable Flow Rate and Frequency
Flow Rate: 70 Levels Adjustable（F030-F100）
Frequency: 95 Levels Adjustable（A005-A100）
Hold down the “FREQ” button to turn on the frequency adjustment function. You can adjust the flow rate and frequency by press “↑” “↓” button.

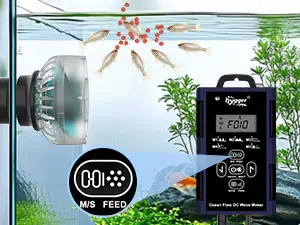

Feeding Mode
Hold down the “FEED” button to pause the wave maker and activate the 10-minute feeding mode.

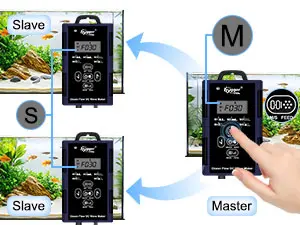

Linkage Mode
Press “M/S” key to set Master/Slave. “M” : controller can set several pumps to run synchronously. “S” : controller can only set flow rate, frequency

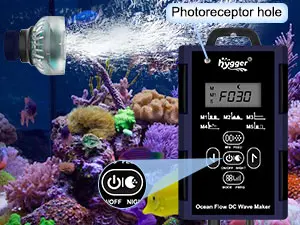

Night Mode
Hold down the “NIGHT” button to activate the night mode. When night falls, it will automatically switch to operate in a constant flow mode of 30%.

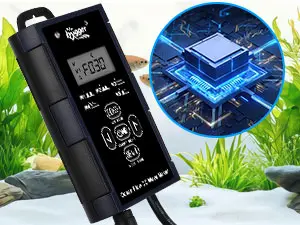

Memory Function
When the power is automatically cut off and restored, the controller will still operate according to the original settings.

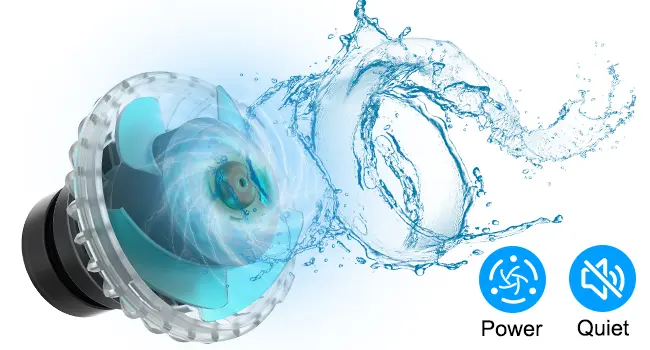

Powerful But Quiet
hygger aquarium wave maker is powerful but quiet when working: 4-blades magnetic impeller and ceramic shaft core, powerful power, low friction, super quiet.

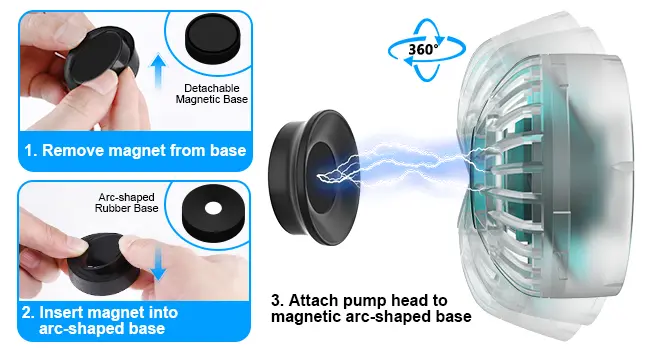

How To Adjust The Angle Of The Pump Head
The magnet of the magnetic base is detachable. Follow the above steps to install the magnet into the arc-shaped base, fix the pump head on the magnetic arc-shaped base, and then you can adjust the angle of the pump head.

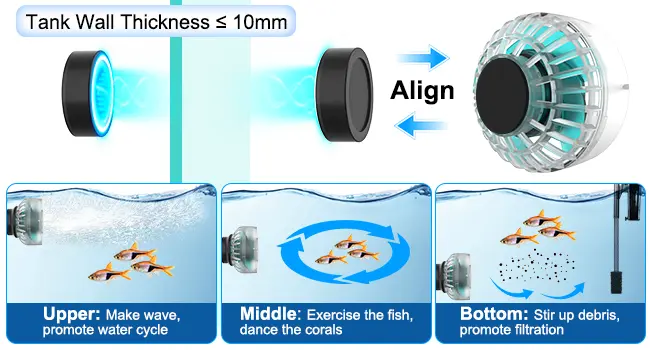

Installation Method
The wavemaker is fixed to the fish tank with strong magnetic base and works quietly without shaking. Installed at different positions in the tank, wave maker can achieve the effects of creating wave, dancing coral, circulating water flow, stirring debris, and constant temperature.

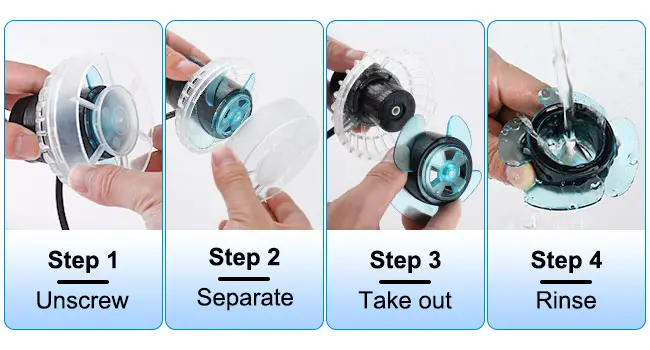

Super Easy To Disassemble For Cleaning
All parts of the aquarium power head are very easy to disassemble and install. You can easily disassemble the pump head for cleaning without using any tools.
Troubleshooting Solutions
ER01
Abnormal operating current: check whether the pump is short-circuited or the controller is damaged.
ER02
Ensure that the controller is not exposed to sunlight or high temperatures.

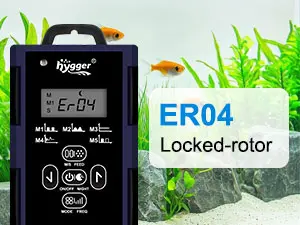

ER04
The impeller has malfunctioned: please cut the power supply, disassemble the pump head to check if there are any obstructions stuck and clean it.

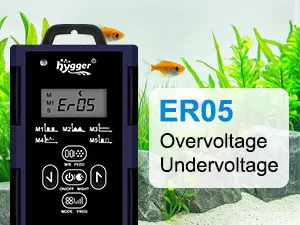

ER05
The working voltage is abnormal: check the input power voltageand use a compliant power adapter.

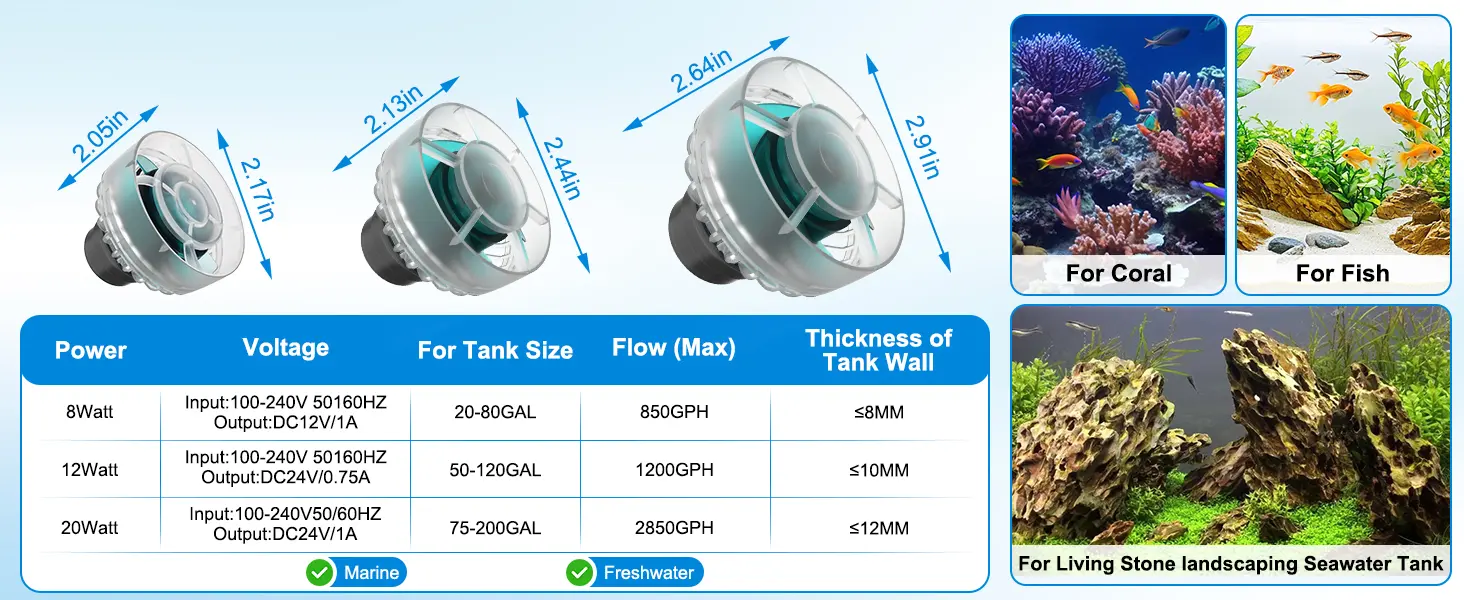

How To Choose?
