SAFETY: Light Flashs and Beeping Alarm

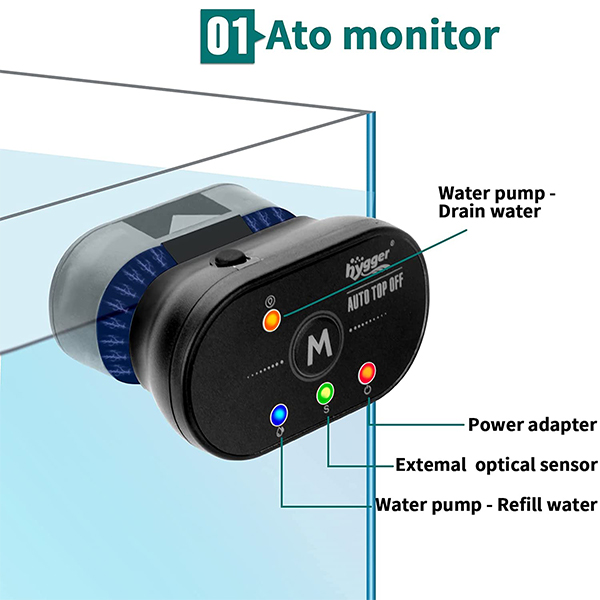

Connect the water pump cord Working State: Constant brightness when refilling water; Off when standby.
Display Abnormal: Beep and Blue light flashing
Stop Working: 1.The refill water pump in the reserve water tank is out of water; 2.The refilling pump’s electric wire loose; 3.The water pump is working abnormally.
Trouble Shooting: 1.Place the pump into the water then press the M button; 2.Plug the water pump into the monitor Blue light hole tightly; 3.Change the pump.
Connect the external optical
sensor cordWorking State: Green Light Off
Display Abnormal: Beep and Green light flashing
Stop Working: 1.Water shortage in reserve water tank; 2. External sensor’s electric wire loose; 3.The external sensor is working abnormally.
Trouble shooting: 1.Refill water into the reserve water tank, make sure the reserve water is higher than external sensor; 2.Plug the sensor into the monitor Green light hole tightly;Connect the power adapter
cordWorking State: Red Constant brightness
Display Abnormal: RED Light OFF
Trouble Shooting: 1.Make sure the power adaptor is plugged into the monitor Red light hole tightly; 2.Confirm that the power supply.
1. Display Abnormal: All lights flashing and Beep
2. Stop Working: 1. Calibration is not stable; 2. The water level in the tank is higher than the ATO.
3. Trouble Shooting: 1. Remove the external monitor and set it down horizontally. Let it re-calibrate precisely; 2. Wipe the monitor and the fish tank wall.Connect the water pump

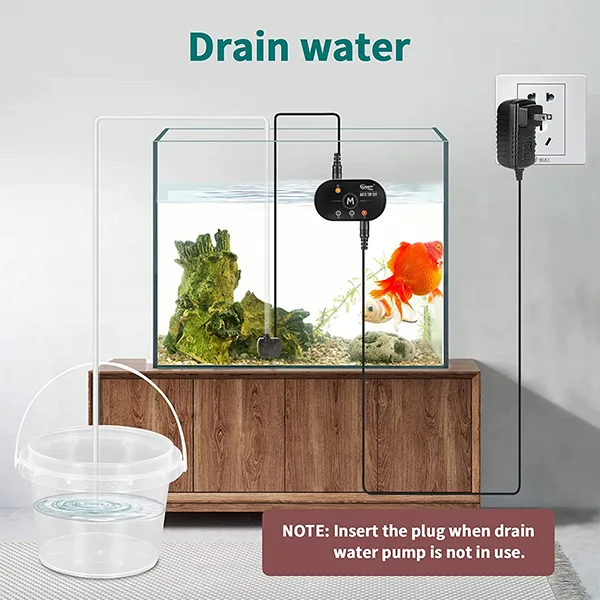

cordWorking State: Constant brightness when draining water, Off when standby.
Display Abnormal: Beep and Yellow light flashing
Stop Working: 1. The fish tank where has drain pump is out of water; 2. The water pump’s electric wire loose; 3. The water pump is working abnormally.
Trouble shooting: 1. Place the pump into the water then press the M button; 2. Plug the drain water pump into the monitor Yellow light hole tightly; 3. Change the pump.

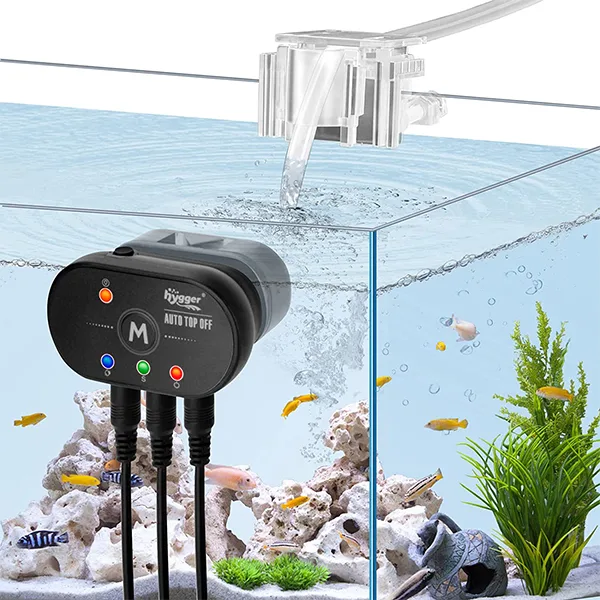

HOW TO INSTALL THE MONITOR
In order to make the product monitoring more accurate and avoid errors, please clean the fish tank wall where the monitor is placed and the two sides where the monitor is fixed on the fish tank wall during the first use. And it is recommended to clean regularly.Put the monitor into the tank and outside the tank respectively, move them horizontally until they are overlapped, and never overlap the inner and outer parts directly. Because the magnetic force in hygger product is very strong.Make sure that there are no obvious bubbles in the fish tank water near where the monitor is placed.
It will affect the judgment of the sensor and cause incorrect or non-refilling of water.• When the water level line is near A (the first monitoring probe), the product will automatically refill water;
• When the water level reaches B (the second monitoring probe), the automatic refill will be suspended;
• Our product uses an ultra-wide prism, and point C will always be kept clean. When the point below B is covered with impurities for a long time, the monitoring fails and overflows, but C is not affected, and an alarm will sound.

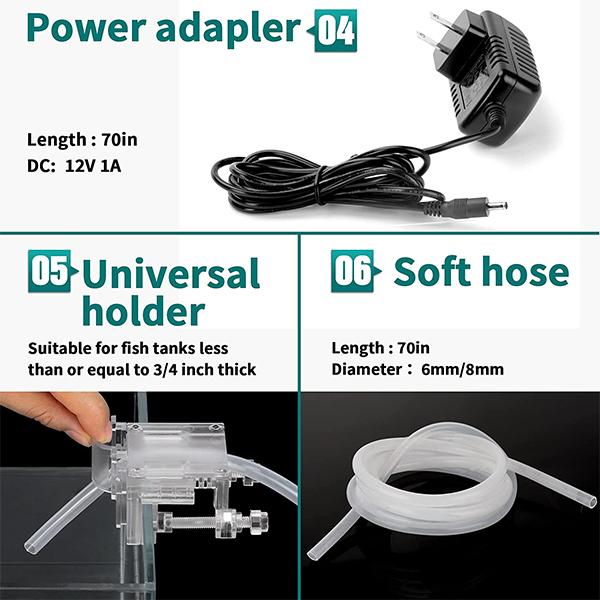

HOW TO INSTALL THE UNIVERSAL HOLDER
Put the holder on the wall of the fish tank;
Tighten the screws to fix;Align the clip with the protruding slide, and install the hose clip;Insert the hose;Install the last hose clamp.

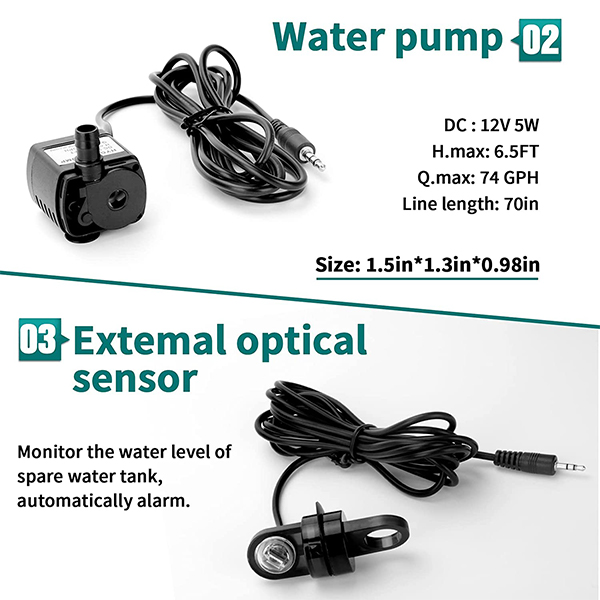

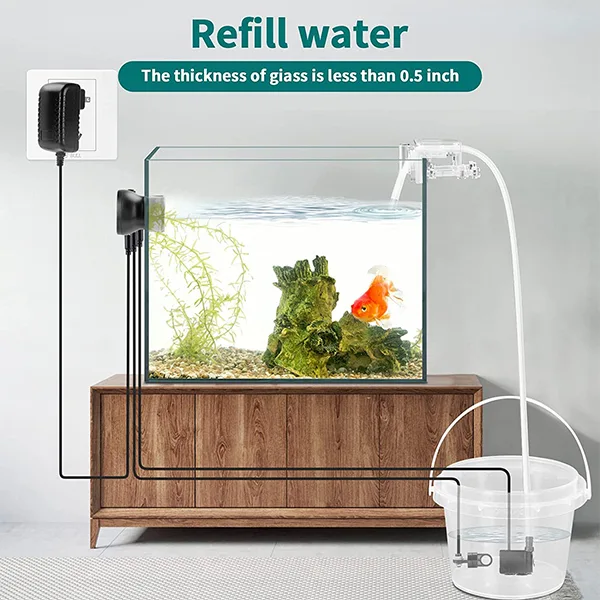

If the external sensor is placed in a spare water tank with glass, please slide the installation horizontally. The thickness of the glass wall of the fish tank is recommended to be ≤0.15in.If you are using a bucket and the thickness is very thick, you can put all the external sensors in the bucket instead of placing them separately.The small black button is to prevent water from entering the hole, so please save it when not in use.• DC 12V 5W
• Q.max:74 GPH
• Line length:70in
INSTALL CORRECTLY (Place the monitor horizontally)
NO: Three holes face upNO: Put verticallyNO: Put oblique
